Revisiting Storage Performance Benchmarking

Few years ago, I had the opportunity to explore the intricacies of storage performance benchmarking using tools like FIO, DISKSPD, and Iometer. Those studies provided valuable insights into the performance characteristics of various storage solutions, shaping my understanding and approach to storage performance analysis. As I prepare for an upcoming project in this domain, I find it essential to revisit my previous work, reflect on the lessons learned, and share my experiences. This blog post aims to provide a comprehensive overview of my benchmarking journey and the evolving landscape of storage performance studies.

Recent advancements

The field of storage technology has seen significant advancements in recent years. The rise of NVMe and storage-class memory technologies has also redefined high-end storage performance, offering unprecedented speed and efficiency. These advancements highlight the dynamic nature of storage performance benchmarking and underscore the importance of staying updated with the latest tools and methodologies.

Challenges

Benchmarking storage performance is not without its challenges. One of the primary difficulties is ensuring a consistent and controlled testing environment, as variations in hardware, software, and network conditions can significantly impact results. Another challenge is the selection of appropriate benchmarks that accurately reflect real-world workloads, which requires a deep understanding of the specific use cases and performance metrics. Additionally, interpreting the results can be complex, as it involves analyzing multiple metrics such as IOPS, throughput, and latency, and understanding their interplay. These challenges necessitate meticulous planning and a thorough understanding of both the benchmarking tools and the storage systems being tested.

Prior works

Following are some of the articles on storage benchmarking that I’ve published in the past:

• Benchmarking vSphere environment using HCIBench
• vSAN performance benchmarking considerations
• Stress test your storage system using Iometer
• Storage performance benchmarking of Kubernetes using FIO StatefulSet
• Benchmarking Kubernetes using K-Bench

Custom storage benchmarking framework

While there are numerous storage benchmarking tools available, such as VMFleet and HCIBench, I wanted to highlight a custom framework I developed a few years ago. Here are some reasons why we created this custom tool:

• Great learning experience: It provided valuable insights into how things work.
• Customization: Being a custom framework, it allows you to add or remove features as needed.
• Flexibility: You can modify multiple parameters to suit your requirements.
• Custom test profiles: You can create tailored storage test profiles.
• No IP assignment needed: There’s no need for IP assignment or DHCP for the stress test VMs.
• Centralized log collection: It offers centralized log collection for detailed analysis.

You can access the scripts and readme on my GitHub repository:

https://github.com/vineethac/vsan_cluster_storage_benchmarking_with_diskspd

Here is an overview.

• Profile Manifest: All storage test profiles are listed in profile_manifest.psd1. You can define as many profiles as you want.

• VM Template: A Windows VM template should be present in the vCenter server.

• Benchmarking Manifest: Details of vCenter, cluster name, VM template, number of stress test VMs per host, etc., are provided in benchmarking_manifest.psd1.

• Deploy Test VMs: deploy_test_vms.ps1 will deploy all the test VMs with pre-configured parameters.

• Start Stress Test: start_stress_test.ps1 will initiate the storage stress test process for all the profiles mentioned in profile_manifest.psd1 one by one.

• Log Collection: All log files will be automatically copied to a central location on the host from where these scripts are running.

• Cleanup: Use delete_test_vms.ps1 to clean up the stress test VMs from the cluster.

Note: These scripts were created about five years ago, and I haven’t had the opportunity to refactor them according to current best practices and new PowerShell scripting standards. I plan to enhance them in the coming months!

This overview should provide you with a clear understanding of the overall process and workflow involved in the storage benchmarking process. I hope it was useful. Cheers!

A decade of tech - My professional journey so far

Laying the Groundwork

My professional career commenced in February 2014, as a Trainee IT Services Engineer at Alamy Images. During my initial days, I was tasked with daily maintenance activities such as running tape backups, setting up Active Directory user accounts, mailboxes, and desktops for new employees. I also handled general IT support, troubleshooting various user issues within the organization.

After a few months, I had the opportunity to set up a lab infrastructure project using old decommissioned servers as part of a continuous learning initiative. This hands-on experience involved racking, stacking, and cabling physical servers, installing and configuring ESXi and Hyper-V hypervisors, FreeNAS storage servers, and deploying highly available clusters. Additionally, I gained exposure to configuring L2 network switches. This project significantly contributed to building my IT infrastructure foundation.

A year later, I was promoted to Junior IT Services Engineer, where I focused on virtualization projects. I spearheaded the migration of over 20 Dev/ Test/ UAT virtual machines from VMware to a Hyper-V cluster, enhancing system flexibility and cost-efficiency. I deployed a high-availability Hyper-V failover cluster in production and contributed to the planning and execution of a iSCSI storage server migration project.

Beyond virtualization, I worked on network infrastructure by a seamless L2 switch replacement and upgrade project with minimal operational disruption. Furthermore, I assisted in capacity planning initiatives for optimized resource utilization for both physical and virtual environments. These experiences refined my technical skills and problem-solving abilities. During this time, I developed a passion for infrastructure management and optimization, shaping my future career path.

From Junior IT Services Engineer to Storage Solutions Engineer

In January 2017, I transitioned to a Systems Development Engineer role at Dell EMC, specializing in Solutions Engineering. This marked a significant career shift as I immersed myself in the world of storage and virtualization solutions integration/development.

My daily responsibilities encompassed the installation and testing of various components, progressing from integration to validating system reliability and performance at scale. I designed and deployed multiple PowerFlex software-defined storage clusters for customer demos and proof-of-concepts, showcasing the product's performance and auto rebuild capabilities. A notable achievement was automating the storage performance benchmarking using PowerShell, FIO, and ELK stack, reducing process time from weeks to days.

I led the engineering efforts for developing a vROps management pack for PowerFlex, ensuring seamless integration and visibility. Additionally, I mastered vSphere Virtual Volumes (vVols), successfully executing integration projects between Dell storage solutions and VMware environments.

To streamline operations, I created a PowerShell module for managing PowerFlex using REST APIs and developed Ansible playbook for automated deployment of Kubernetes cluster with PowerFlex CSI driver. My expertise extended beyond systems engineering and automation as I authored and published whitepapers on disaster recovery using VMware SRM and hardware lifecycle management with Dell OME.

This period solidified my reputation as a virtualization and storage solutions expert, providing me with a deep understanding of storage architecture, performance optimization, and automation. I developed a passion for building scalable and reliable hyperconverged solutions.

From Storage Solutions Engineer to Site Reliability Engineer

In July 2021, I transitioned to a Site Reliability Engineer (SRE) role at VMware, focusing on ensuring the reliability and scalability of Kubernetes-as-a-Service project based on the vSphere with Tanzu platform.

Managing a vast infrastructure of Kubernetes clusters, I honed my skills in incident response, GitOps pipelines, automation, and monitoring. I played a crucial role in maintaining platform availability, collaborating closely with multiple internal teams and stakeholders to resolve issues and enhance service delivery. My proficiency in Python and PowerShell was instrumental in automating tasks and building custom monitoring solutions. During this time, I prepared diligently, practiced extensively, and successfully qualified for the CKA exam.

Beyond core SRE responsibilities, I explored emerging technologies. I successfully deployed and evaluated open-source language models on Kubernetes using Python, Ollama, and LangChain. In addition, I contributed to developing custom metrics for the Kubernetes-as-a-Service platform using Python, Prometheus, Grafana, and Helm.

This role deepened my expertise and ability to bridge the gap between development and operations, fostering a culture of reliability and efficiency. It has been an exciting journey of learning and growth, positioning me as a versatile IT professional with a strong foundation in both infrastructure and cloud-native technologies.

Gratitude

"This journey has been immensely fulfilling, made possible by the support and encouragement of exceptional organisations, inspiring managers, talented colleagues, friends, and family. I am truly grateful for the opportunities to learn, grow, and contribute meaningfully to driving success and making a positive impact."

The journey continues...

vSphere with Tanzu using NSX-T - Part14 - Testing TKC storage using kubestr

In the previous posts we discussed the following:

Part1 - Prerequisites

Part2 - Configure NSX

Part3 - Edge Cluster

Part4 - Tier-0 Gateway and BGP peering

Part5 - Tier-1 Gateway and Segments

Part6 - Create tags, storage policy, and content library

Part7 - Enable workload management

Part8 - Create namespace and deploy Tanzu Kubernetes Cluster

Part9 - Monitoring

Part10 - Upgrade Tanzu Kubernetes Cluster

Part11 - Troubleshooting TKC

Part12 - Deploy application on TKC and access it

Part13 - Export WCP admin kubeconfig

This article is about using kubestr to test storage options of Tanzu Kubernetes Cluster (TKC). Following are the steps to install kubestr on MAC:

• wget https://github.com/kastenhq/kubestr/releases/download/v0.4.31/kubestr_0.4.31_MacOS_amd64.tar.gz
• tar -xvf kubestr_0.4.31_MacOS_amd64.tar.gz

• chmod +x kubestr
• mv kubestr /usr/local/bin



Now, lets do kubestr help.

% kubestr help
kubestr is a tool that will scan your k8s cluster
        and validate that the storage systems in place as well as run
        performance tests.

Usage:
  kubestr [flags]
  kubestr [command]

Available Commands:
  browse      Browse the contents of a CSI PVC via file browser
  csicheck    Runs the CSI snapshot restore check
  fio         Runs an fio test
  help        Help about any command

Flags:
  -h, --help             help for kubestr
  -e, --outfile string   The file where test results will be written
  -o, --output string    Options(json)

Use "kubestr [command] --help" for more information about a command.



I am going to use the following TKC for testing.

% KUBECONFIG=gc.kubeconfig kubectl get nodes
NAME                               STATUS   ROLES                  AGE    VERSION
gc-control-plane-pwngg             Ready    control-plane,master   103d   v1.20.9+vmware.1
gc-workers-wrknn-f675446b6-cz766   Ready    <none>                 103d   v1.20.9+vmware.1
gc-workers-wrknn-f675446b6-f6zqs   Ready    <none>                 103d   v1.20.9+vmware.1
gc-workers-wrknn-f675446b6-rsf6n   Ready    <none>                 103d   v1.20.9+vmware.1



Let's run kubestr against the cluster now.

% KUBECONFIG=gc.kubeconfig kubestr

**************************************
  _  ___   _ ___ ___ ___ _____ ___
  | |/ / | | | _ ) __/ __|_   _| _ \
  | ' <| |_| | _ \ _|\__ \ | | |   /
  |_|\_\\___/|___/___|___/ |_| |_|_\

Explore your Kubernetes storage options
**************************************
Kubernetes Version Check:
  Valid kubernetes version (v1.20.9+vmware.1)  -  OK

RBAC Check:
  Kubernetes RBAC is enabled  -  OK

Aggregated Layer Check:
  The Kubernetes Aggregated Layer is enabled  -  OK

W0130 14:17:16.937556   87541 warnings.go:70] storage.k8s.io/v1beta1 CSIDriver is deprecated in v1.19+, unavailable in v1.22+; use storage.k8s.io/v1 CSIDriver
Available Storage Provisioners:

  csi.vsphere.xxxx.com:
    Can't find the CSI snapshot group api version.
    This is a CSI driver!
    (The following info may not be up to date. Please check with the provider for more information.)
    Provider:            vSphere
    Website:             https://github.com/kubernetes-sigs/vsphere-csi-driver
    Description:         A Container Storage Interface (CSI) Driver for VMware vSphere
    Additional Features: Raw Block,<br/><br/>Expansion (Block Volume),<br/><br/>Topology Aware (Block Volume)

    Storage Classes:
      * sc2-01-vc16c01-wcp-mgmt

    To perform a FIO test, run-
      ./kubestr fio -s <storage class>




You can run storage tests using kubestr and it uses FIO for generating IOs. For example this is how you can run a basic storage test.

% KUBECONFIG=gc.kubeconfig kubestr fio -s sc2-01-vc16c01-wcp-mgmt -z 10G
PVC created kubestr-fio-pvc-zvdhr
Pod created kubestr-fio-pod-kdbs5
Running FIO test (default-fio) on StorageClass (sc2-01-vc16c01-wcp-mgmt) with a PVC of Size (10G)
Elapsed time- 29.290421119s
FIO test results:

FIO version - fio-3.20
Global options - ioengine=libaio verify=0 direct=1 gtod_reduce=1

JobName: read_iops
  blocksize=4K filesize=2G iodepth=64 rw=randread
read:
  IOPS=3987.150391 BW(KiB/s)=15965
  iops: min=3680 max=4274 avg=3992.034424
  bw(KiB/s): min=14720 max=17096 avg=15968.827148

JobName: write_iops
  blocksize=4K filesize=2G iodepth=64 rw=randwrite
write:
  IOPS=3562.628906 BW(KiB/s)=14267
  iops: min=3237 max=3750 avg=3565.896484
  bw(KiB/s): min=12950 max=15000 avg=14264.862305

JobName: read_bw
  blocksize=128K filesize=2G iodepth=64 rw=randread
read:
  IOPS=2988.549316 BW(KiB/s)=383071
  iops: min=2756 max=3252 avg=2992.344727
  bw(KiB/s): min=352830 max=416256 avg=383056.187500

JobName: write_bw
  blocksize=128k filesize=2G iodepth=64 rw=randwrite
write:
  IOPS=2754.796143 BW(KiB/s)=353151
  iops: min=2480 max=2992 avg=2759.586182
  bw(KiB/s): min=317440 max=382976 avg=353242.781250

Disk stats (read/write):
  sdd: ios=117160/105647 merge=0/1210 ticks=2100090/2039676 in_queue=4139076, util=99.608589%
  -  OK

As you can see, a PVC of 10G, a FIO pod will be created, and this will be used for the FIO test. Once the test is complete, the PVC and FIO pod will be deleted automatically.

I hope it was useful. Cheers!

vSphere with Tanzu using NSX-T - Part4 - Tier-0 Gateway and BGP peering

In the previous posts we discussed the following:

Part1: Prerequisites
Part2: Configure NSX-T
Part3: Edge Cluster

The next step is to create a Tier-0 Gateway, configure its interfaces, and BGP peer with the L3 TOR switches. Following is a high-level logical representation of this configuration:

Configure Tier-0 Gateway

Before creating the T0-Gateway, we need to create two segments.

• Add Segments.
• Create a segment "ls-uplink-v54"
• VLAN: 54
• Transport Zone: "edge-vlan-tz"
• Create a segment "ls-uplink-v55"
• VLAN: 55
• Transport Zone: "edge-vlan-tz"

• Add Tier-0 Gateway.
• Provide the necessary details as shown below.

• Add 4 interfaces and configure them as per the logical diagram given above.
• edge-01-uplink1 - 192.168.54.254/24 - connected via segment ls-uplink-v54
• edge-01-uplink2 - 192.168.55.254/24 - connected via segment ls-uplink-v55

• edge-02-uplink1 - 192.168.54.253/24 - connected via segment ls-uplink-v54
• edge-02-uplink2 - 192.168.55.253/24 - connected via segment ls-uplink-v55

• Verify the status is showing success for all the 4 interfaces that you added.

• Routing and multicast settings of T0 are as follows:

• You can see a static route is configured. The next hop for the default route 0.0.0.0/0 is set to 192.168.54.1.

• The next hop configuration is given below.

• BGP settings of T0 are shown below.

• BGP Neighbor config:

• Verify the status is showing success for the two BGP Neighbors that you added.

• Route re-distribution settings of T0:

• Add route re-distribution.

• Set route re-distribution.

Now, the T0 configuration is complete. The next step is to configure BGP on the Dell S4048-ON TOR switches.

Configure TOR Switches

---On TOR A---
conf
router bgp 65500
neighbor 192.168.54.254 remote-as 65400 #peering to T0 edge-01 interface
neighbor 192.168.54.254 no shutdown
neighbor 192.168.54.253 remote-as 65400 #peering to T0 edge-02 interface
neighbor 192.168.54.253 no shutdown
neighbor 192.168.54.3 remote-as 65500 #peering to TOR B in VLAN 54
neighbor 192.168.54.3 no shutdown
maximum-paths ebgp 4
maximum-paths ibgp 4

---On TOR B---
conf
router bgp 65500
neighbor 192.168.55.254 remote-as 65400 #peering to T0 edge-01 interface
neighbor 192.168.55.254 no shutdown
neighbor 192.168.55.253 remote-as 65400 #peering to T0 edge-02 interface
neighbor 192.168.55.253 no shutdown
neighbor 192.168.54.2 remote-as 65500 #peering to TOR A in VLAN 54
neighbor 192.168.54.2 no shutdown
maximum-paths ebgp 4
maximum-paths ibgp 4

---Advertising ESXi mgmt and VM traffic networks in BGP on both TORs---

conf
router bgp 65500
network 192.168.41.0/24
network 192.168.43.0/24

Thanks to my friend and vExpert Harikrishnan @hari5611 for helping me with the T0 configs and BGP peering on TORs. Do check out his blog https://vxplanet.com/.

Verify BGP Configurations

The next step is to verify the BGP configs on TORs using the following commands:

show running-config bgp

show ip bgp summary

show ip bgp neighbors

Follow the VMware documentation to verify the BGP connections from a Tier-0 Service Router. In the below screenshot you can see that both Edge nodes have the BGP neighbors 192.168.54.2 and 192.168.55.3 with state Estab.

In the next article, I will talk about adding a T1 Gateway, adding new segments for apps, connecting VMs to the segments, and verify connectivity to different internal and external networks. I hope this was useful. Cheers!

Dell EMC PowerFlex MP for vROps 8.x - Part7 - Create custom reports

In March 2020, I published a blog on how to create custom views and reports in vROps 8.x. This article explains how to create a custom storage report for Dell EMC PowerFlex using the PowerFlex Management Pack for vROps 8.x.

Sample PowerFlex Storage Report PDF and template is available in my GitHub repo for download. You can use it as a starting point/ modify it as per requirement.

To create a new view: Dashboards - Views - Add.

Provide a name and description for the new view. Here, for example, I will create a view that shows PowerFlex Protection Domain Info.

Select List.

Select Protection Domain as subject and group it by PowerFlex Rack/ Appliance System.

Double click or drag and drop the selected metrics or properties to include in the view. In the following screenshot, I selected 4 capacity metrics to include in the view.

You can also select and change the units and transformation as per requirements. Once it is done, click Save.

Now a view is created. Similarly, you can create multiple views for the different PowerFlex resource kinds. The next step is to include this view in an existing template or in a new template.

To create a new report template: Dashboards - Reports - Add.

• Provide a name and description for the new report template.
• From the views and dashboards, find the PowerFlex Protection Domain Info view that we created earlier, double-click or drag and drop them to the right pane. You can add multiple views to be included in this report template.
• Select PDF and CSV.
• Select all the layout options if you like to and click Save.
• Now the custom report template is created. You can select it and click Run.

Select PowerFlex and then select PowerFlex World and click ok.

The report will run in the background and will be available to download under the "Generated Reports" tab. You can select it and download the PDF or CSV file. You can even configure a schedule to generate a report and email it or save it to a location automatically based on your requirements. Hope it was useful. Cheers!

Related posts

Part1: Install
Part2: Configure
Part3: Dashboards
Part4: Resource kinds and relationships
Part5: Collection interval
Part6: Create custom alerts

Dell EMC PowerFlex MP for vROps 8.x Blog Series



Image source: infohub.delltechnologies.com/section-assets/powerflex-vrops-infographics

Consolidating all my blogs on Dell EMC PowerFlex Management Pack for vROps 8.x.

Part1: Install
Part2: Configure
Part3: Dashboards
Part4: Resource kinds and relationships
Part5: Collection interval
Part6: Create custom alerts
Part7: Create custom reports

References

Dell EMC blog: https://infohub.delltechnologies.com/p/introducing-the-powerflex-management-pack-for-vrealize-operations/

Product guide: https://infohub.delltechnologies.com/section-assets/powerflexadapter-for-vrops-product-guide

VMware marketplace: https://marketplace.cloud.vmware.com/services/details/dell-emc-powerflex-management-pack-for-vrops?slug=true

Infographics: https://infohub.delltechnologies.com/section-assets/powerflex-vrops-infographics

Video: https://infohub.delltechnologies.com/l/videos-44/powerflex-management-pack-for-vrealize-operations-1

vSphere with Tanzu using NSX-T - Part3 - Edge Cluster

In the previous post, we went through basic NSX-T configurations. The next step is to deploy Edge VMs and create an Edge cluster. Before creating Edge VMs, we need to create two trunk port groups on the VDS using the VCSA web UI. Uplinks of the Edge VMs will be connected to these two trunk port groups.

• Create 2 trunk port groups on the VDS.
• "Trunk01-NSXT-Edge"
• "Trunk02-NSXT-Edge"

• Add Edge Transport Nodes.
• Create two Edge VMs "edge-01, edge-02".
• Click ADD EDGE VM, follow the wizard, and provide all the details.

• Click Finish. Follow the same process and deploy one more Edge VM.

• The next step is to create an Edge Cluster "edge-cluster-01" and add the two Edge VMs to it.

The NSX-T Edge Cluster is now ready. Next, we have to add a Tier-0 Gateway and configure BGP peering with the router or L3 TOR switches. This will be covered in the next part. Hope it was useful. Cheers!

Related posts

Part1: Prerequisites
Part2: Configure NSX-T

Dell EMC PowerFlex MP for vROps 8.x - Part6 - Create custom alerts

In this post, we will take a look at creating custom alerts for PowerFlex by adding symptom definitions and alert definitions. Refer to my previous blog post to understand more about the alerting aspects in vROps. Here we will take an example scenario and see how we can create custom symptom definitions and alert definitions.

Scenario

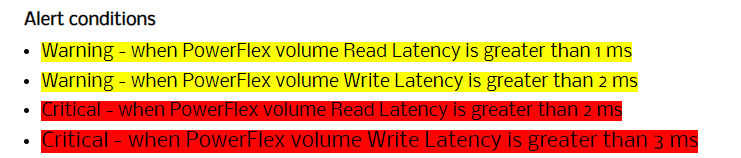

The user is running some latency-sensitive business-critical applications using PowerFlex storage. Below are the symptoms that he would like to define and alerts should be produced for the same and these should affect the "Health" badge of the PowerFlex volume object.

Step1: Add Symptom Definitions

Go to Alerts - Symptom Definitions - Click Add.

Select base object type: Expand PowerFlex Adapter - Select Volume.

• Select the metric User Data SDC Read Latency (ms): double click on it twice so that you can define both warning and critical symptoms.
• Select the metric User Data SDC Write Latency (ms): double click on it twice so that you can define both warning and critical symptoms.

Now, fill all the required fields as per the conditions we defined earlier.

Click Save. Now as you can see below the 4 symptom definitions are created.

Step2: Add Alert Definitions

Go to Alerts - Alert Definitions - Click Add.

• Provide alert name, select the base object type and advanced settings and click Next.

• Filter and search the symptoms that we created earlier. Drag and drop the two volume read latency related symptoms and select Any. Click Next.

• If you want to provide any recommendations you can add it in this step and click Next.
• Select vSphere Solution's Default Policy and click Next and click Create.

Similarly, you can create an alert definition for PowerFlex Volume Write Latency too.

Now, we are all done. Let's test the alerts! I am using FIO to generate IO load on one of the PowerFlex volume.

You can see the Read Latency for this volume is grater than 1 ms, and so a warning alert should be produced for this specific volume.

Hope it was useful. Cheers!

Related posts

Part1: Install
Part2: Configure
Part3: Dashboards
Part4: Resource kinds and relationships
Part5: Collection interval

References

Product guide: https://infohub.delltechnologies.com/section-assets/powerflexadapter-for-vrops-product-guide

PowerFlex website: https://www.delltechnologies.com/PowerFlex

PowerFlex white papers and blog: https://infohub.delltechnologies.com/t/powerflex-14/

vSphere with Tanzu using NSX-T - Part2 - Configure NSX

In this post, we will take a look at the different configuration steps that are required before enabling workload management to establish connectivity to the supervisor cluster, supervisor namespaces, and all objects that run inside the namespaces, such as vSphere pods, and Tanzu Kubernetes Clusters.

At this point, I assume that the vSAN cluster is up and NSX-T 3.0 is installed. NSX-T appliance is connected to the same management network where the VCSA and ESXi nodes are connected. In my case, it will be through VLAN 41. Note that all the ESXi nodes of the vSAN cluster are connected to one vSphere Distributed Switch and has two uplinks from each node that connects to TOR A and TOR B.

NSX-T configurations

• Add Compute Managers. I've added the vCenter server here.

• Add Uplink Profiles.
• Create a host uplink profile "nsx-uplink-profile-lbsrc" (this is for host TEP using VLAN 52).
• Create an edge uplink profile "nsx-edge-uplink-profile-lbsrc" (this is for edge TEP using VLAN 53).

• Add Transport Zones.
• Create an overlay transport zone "tz-overlay".
• Create a VLAN transport zone "edge-vlan-tz".

• Add IP Address Pools.
• Create an IP address pool for host TEPs "TEP-Pool-01" (this is for host TEP using VLAN 52).
• Create an IP address pool for edge TEPs "Edge-TEP-Pool-01" (this is for Edge TEP using VLAN 53).

• Add Transport Node Profiles.

• Configure Host Transport Nodes. Select the required cluster and click configure NSX to convert all the ESXi nodes as transport nodes.

The next step is to deploy Edge VMs (Edge Transport Nodes) and create a Edge Cluster. We will cover it in the next part. Hope it was useful. Cheers!

Related posts

Part1 - Prerequisites

References

https://docs.vmware.com/en/VMware-vSphere/7.0/vmware-vsphere-with-tanzu/GUID-8D0E905F-9ABB-4CFB-A206-C027F847FAAC.html

https://docs.vmware.com/en/VMware-vSphere/7.0/vmware-vsphere-with-tanzu/GUID-B156CDA6-B056-4D1C-BBC5-07D1A701E402.html
